10 PIECE STUD REMOVAL & INSTALLATION TOOL SET (ALL VESPA AND PIAGGIO SCOOTERS)

10 PIECE STUD REMOVAL & INSTALLATION TOOL SET

Forget the "double nut" method that risks stretching threads or snapping studs. The Scooterwest Engine Stud Removal & Installation Kit is the professional solution for safely extracting and seating studs in your Vespa or small engine rebuild. Designed specifically for the tight tolerance of both vintage Vespa’s and modern scooters, this kit ensures you get the job done without the headache of damaged hardware.

Key Features:

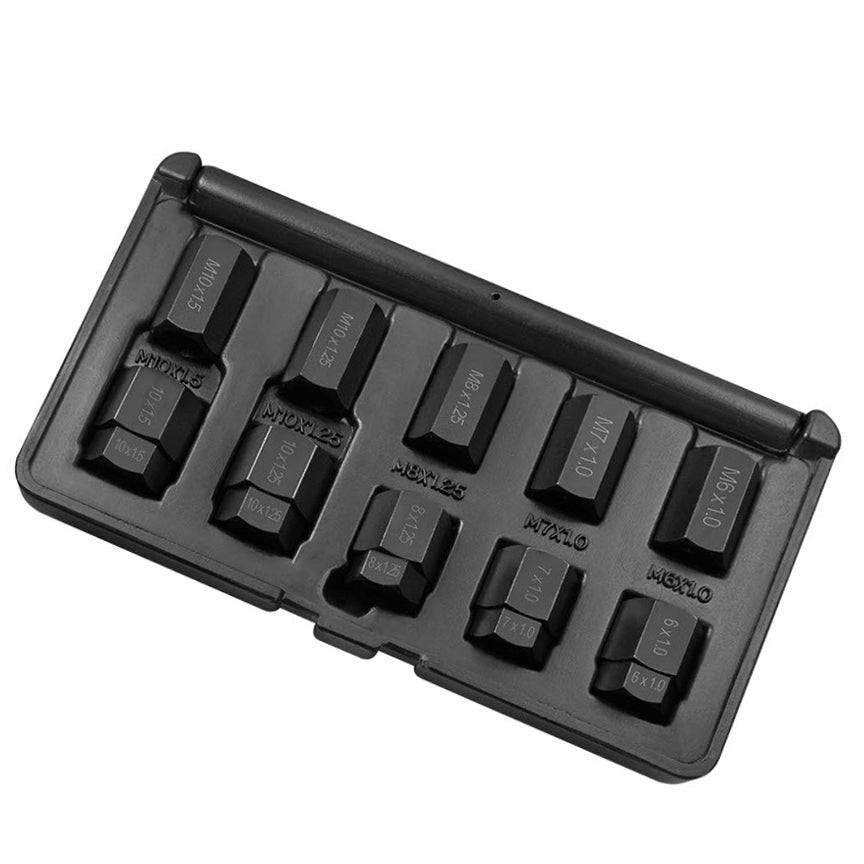

• 10-pcs kit Includes Installers & Extractors for M6x1.0, M7x1.0, M8x1.25, M10x1.25 & M10x1.50 all in a handy blow molded storage case.
• Superior Thread Engagement: The removal adapters are designed to grab more threads than standard nuts, providing a secure, non-slip grip on even the most stubborn, seized studs.
• Advanced Load Distribution: The installation tools feature a unique internal ball and set-screw design. This technology distributes torque evenly throughout the stud, allowing you to reach full seating and proper torque specs without damaging the stud's tip.
• Comprehensive Size Range: This kit includes the most common metric sizes found both on Vintage Vespa’s like the common M7 Stud and all modern scooters, making it perfect for case, cylinder head studs, exhaust studs, and more.

How to Use

For Removal:

• Select your Size: Choose the removal adapter that matches your stud’s thread size and thread pitch.
• Thread it On: Spin the adapter onto the stud until it is fully engaged. The increased thread contact ensures a solid grip that won't round off the stud’s threads.
• Use a 19mm & 22mm wrench to tighten the pair of nuts on the extractor tool to clinch the stud’s threads.
• Extract the stud with either a 22mm socket or wrench.
• Extract Tool from Stud with a pair of wrenches.

For Installation:

• Thread the Stud: Thread the new stud into the correct sized tool until it hits the internal ball.
• Drive & Torque: Thread the stud into your engine. The tool allows you to drive the stud home and apply the final torque safely, as the load is distributed across the threads rather than the top of the stud.
• Extract Tool from Stud: Use a 17mm wrench or socket to back the stud out of the engine case.  If needed, use a 6mm Allen to back the tension of the ball out of the tool.

**Disclaimer-Tools cannot be returned or refunded under any circumstances.**
