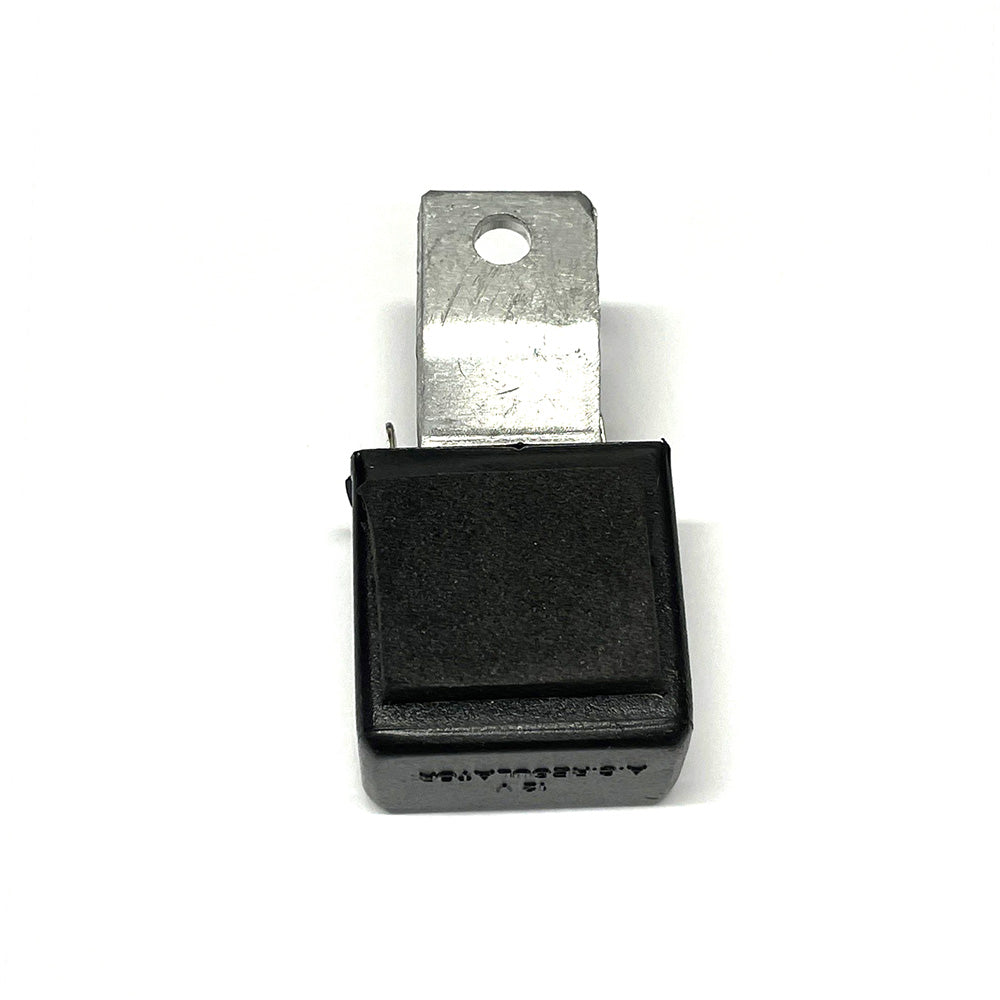

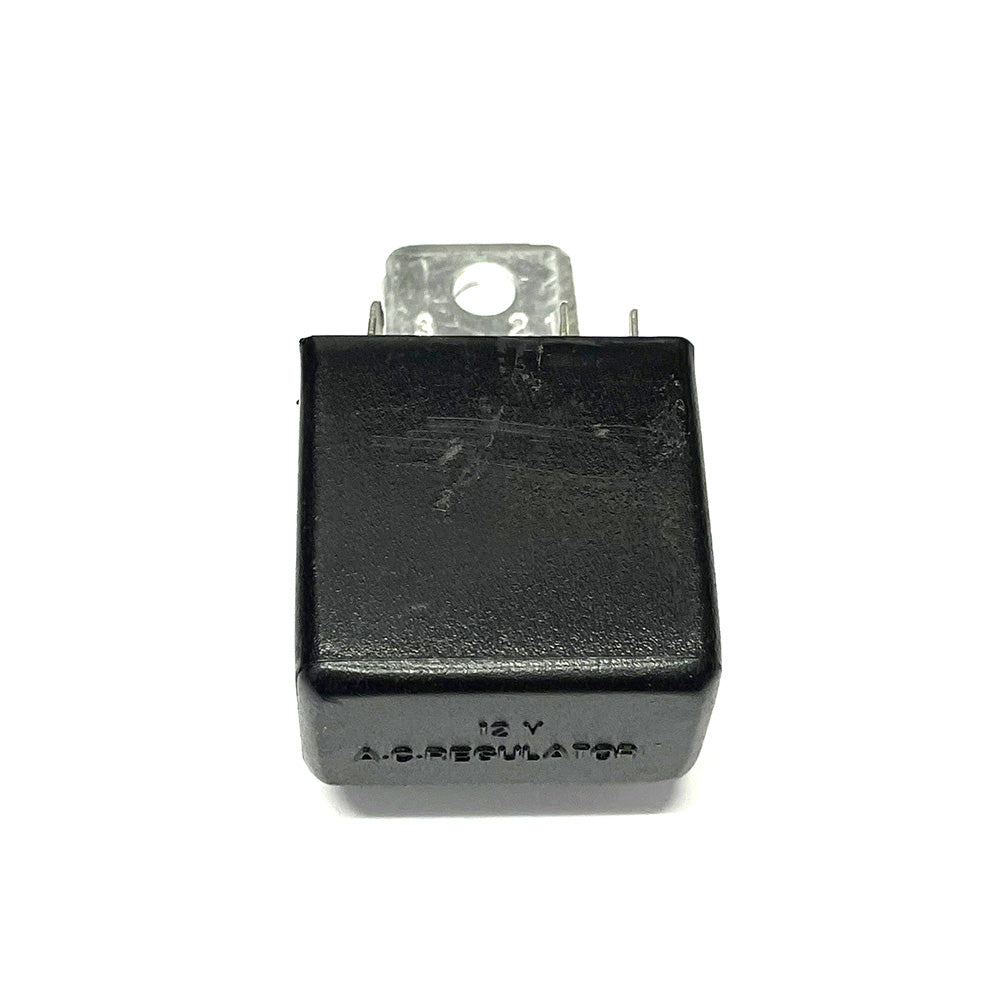

**UNIVERSAL** 12 VOLT AC INLINE REGULATOR (BULB SAVER, Clipper diode, or Zenner Diode)

**UNIVERSAL** 12 VOLT AC IN-LINE REGULATOR (Bulb Saver)

12V AC Inline Shunt Regulator. This is just a simple AC shunt regulator for a NO battery 12 volt system. This handy in-line 12V AC Shunt Voltage Regulator (Clipper diode or Zenner Diode) will keep the voltage to a consistent 12 volts AC. This will keep bulbs from burning out, saving you thousands of dollars. It can also be used to replace the original 3-terminal regulator #161639 found on European Vespa PX that does not have electric start, many far-east restoration and used with non-battery Vespa conversions with single output AC stator and WIREKIT-1 simplified wiring. We also offer a larger version of this 12 volt AC shunt regulator, see part #161639-AM

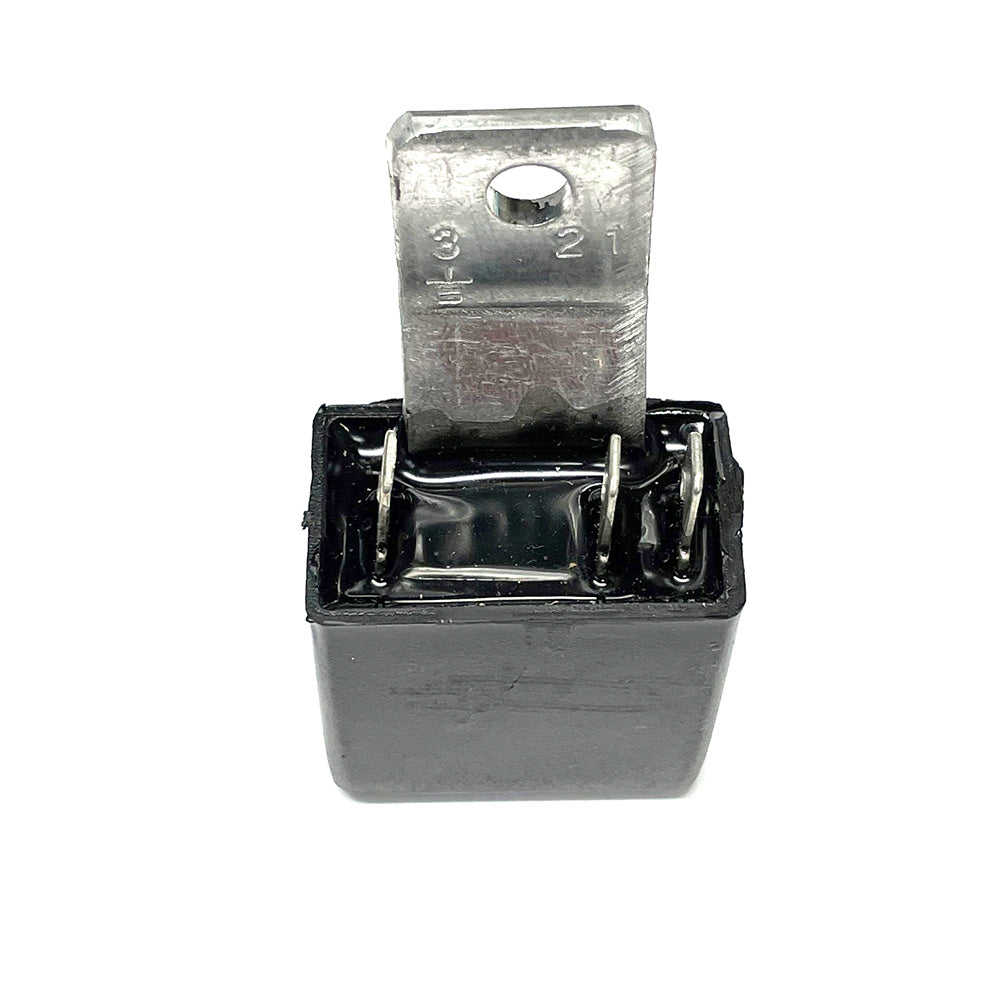

Functions of the terminals on this voltage regulator are:

• Both 1 and 2 terminals are the AC shunt regulation for lighting. They are internally connected, 1 can go to your lighting coil and 2 can be your output to your bulbs. They function the same as the original Vespa regulator “G” terminal.
• Terminal 3 is Ground terminal that typically ties to a black wire and will have continuity to the mounting tab of this regulator, scooter frame and engine cases. This must have a good and clean ground in order to function correctly and clip or shunt the AC input power to no more than 14 volts AC.

Connectors or instructions are NOT included. Electric items have no warranty and are NOT returnable.
