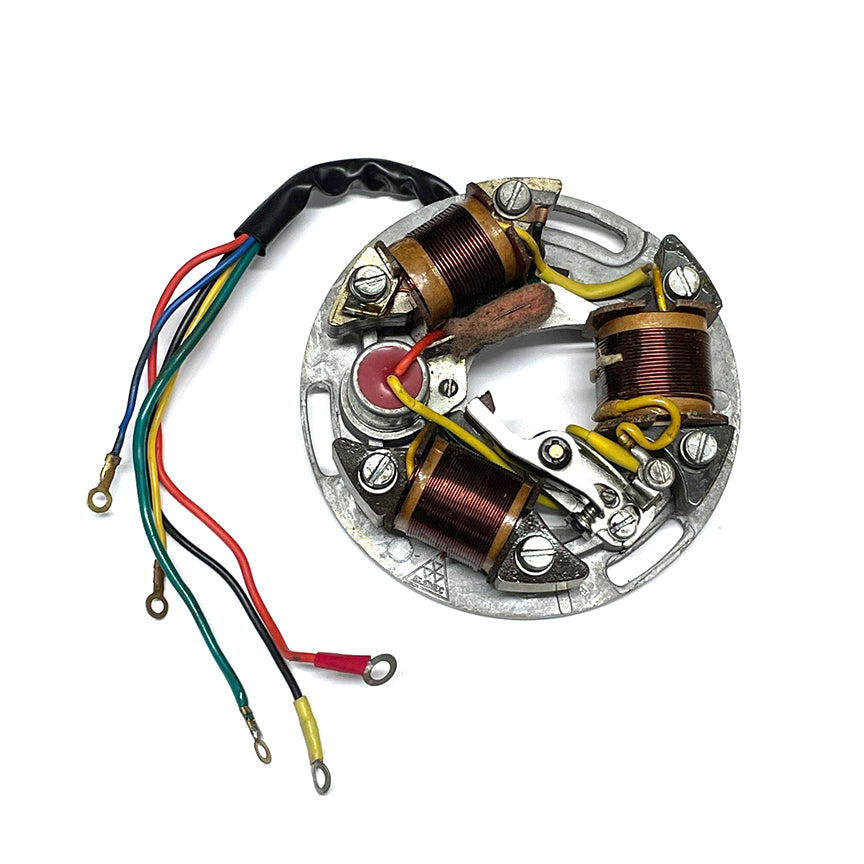

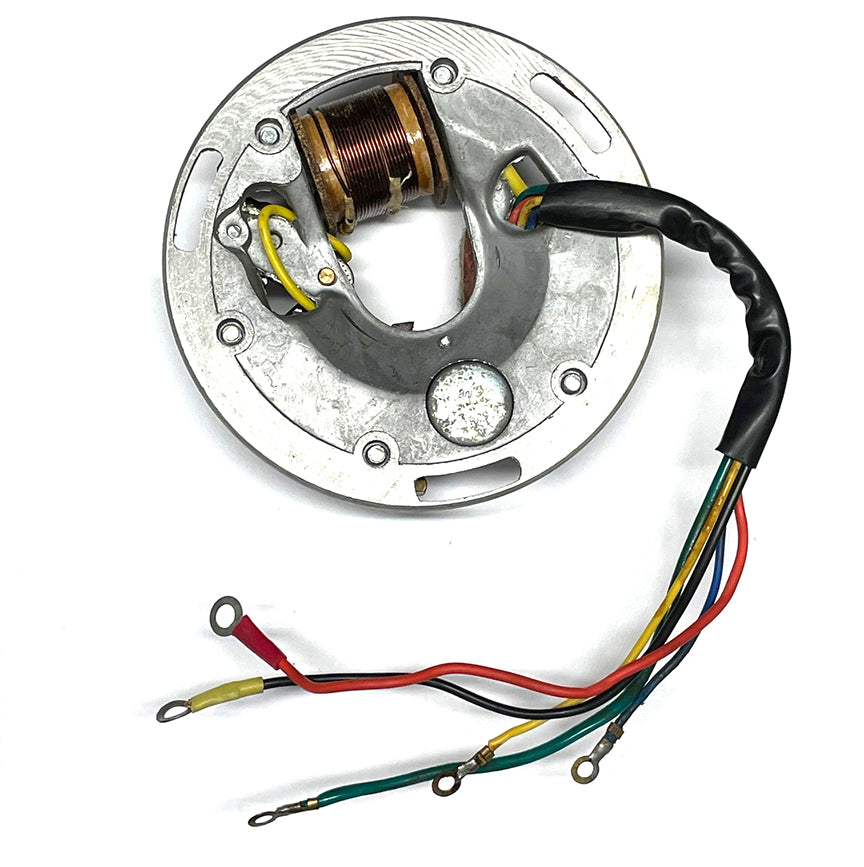

VINTAGE VESPA STATOR PLATE VNA VLA VNB VBB VLB VNC (5 WIRE 6V AC) (056747 071473 133503)

Universal 6V AC stator plate with 5 wires for most 1960's-1970's Vespa scooters that are AC (without a battery).

Fits: VLA-VNB-VBB2-VLB-VNC. Can also be modified to fit other Vespas or use the new coils off this stator on Small Frames, older Allstate, or Handle bar Vespa stator backing plates (VSB-VSC-VSD and others) (you will remove these coils and place them on your original stator, so it is worth it just for the coils).

These are manufactured in India, but are the nicest we have found (customers have had a lot of problems with the cheap ones on eBay and have called us to order these nicer ones after wasting their money on one of those). The Vespa Motorsport service department has gone through and tested each stator plate, so we know they are all GOOD.

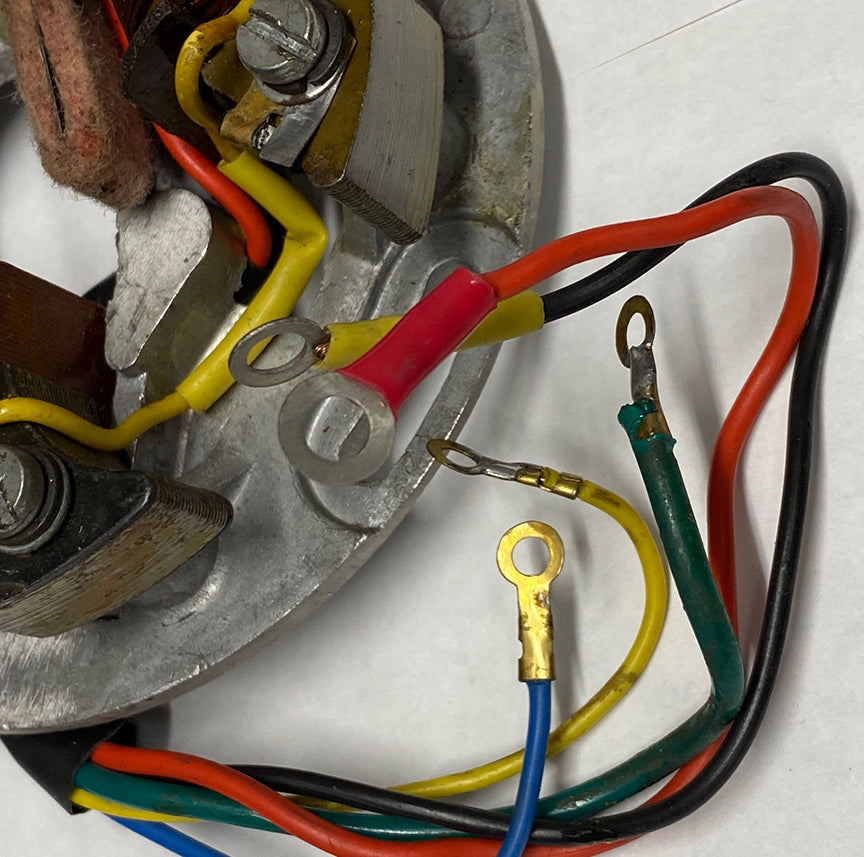

These come with 5 wires and must be used with Switch 092041 and Wire Harness 092563.

• Red and Black are for the HT coil
• Green is Headlight and Horn
• Blue is Taillight-stop light
• Yellow is Running Light and Taillight
